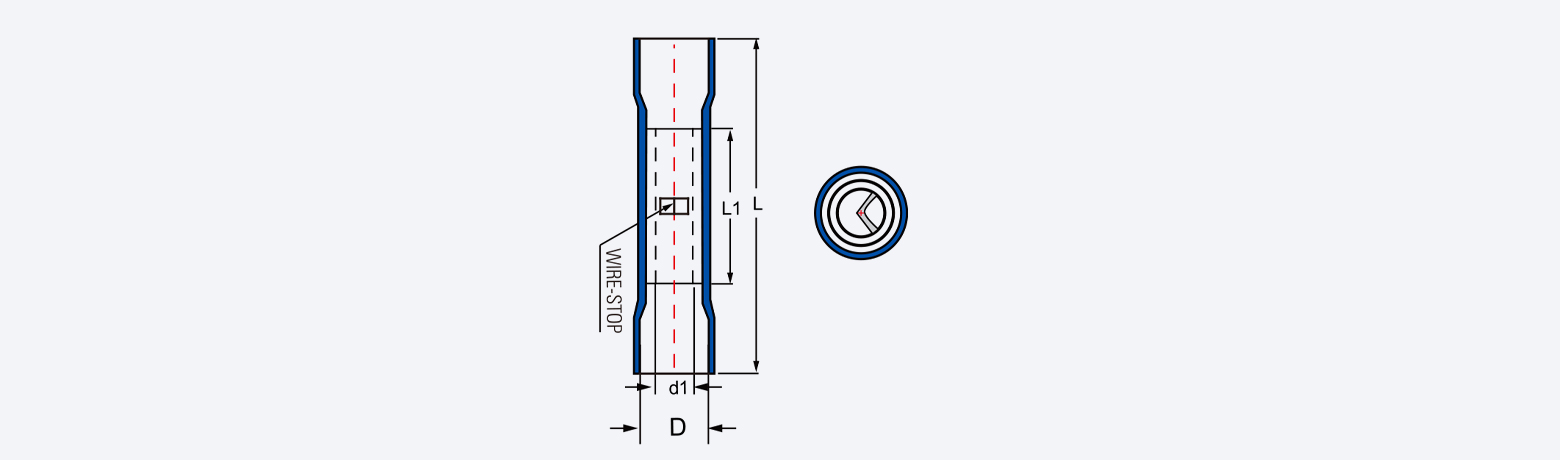

ITEM NO. | DIMENSION (mm) | Imax | Wire area | PCS/ | COLOR | USE THE | EXPLANATION | ||||
L | L1 | D | d1 | A.W.G | mm² | ||||||
HBHT1.25 | 38.0 | 15.0 | 4.8 | 2.15 | 19A | 22-16 | 0.5-1.5 | 500 | ● Red | HX-30J1 | End material: Purple copper Insulation material: double-walled heat-distillation sleeve Max temperature resistance: 105℃ |
HBHT 2 | 38.0 | 15.0 | 5.8 | 2.75 | 27A | 16-14 | 1.5-2.5 | 500 | ● Blue | ||
HBHT 5.5 | 42.0 | 15.0 | 6.8 | 4.25 | 48A | 12-10 | 4-6 | 250 | ● Yellow | ||
