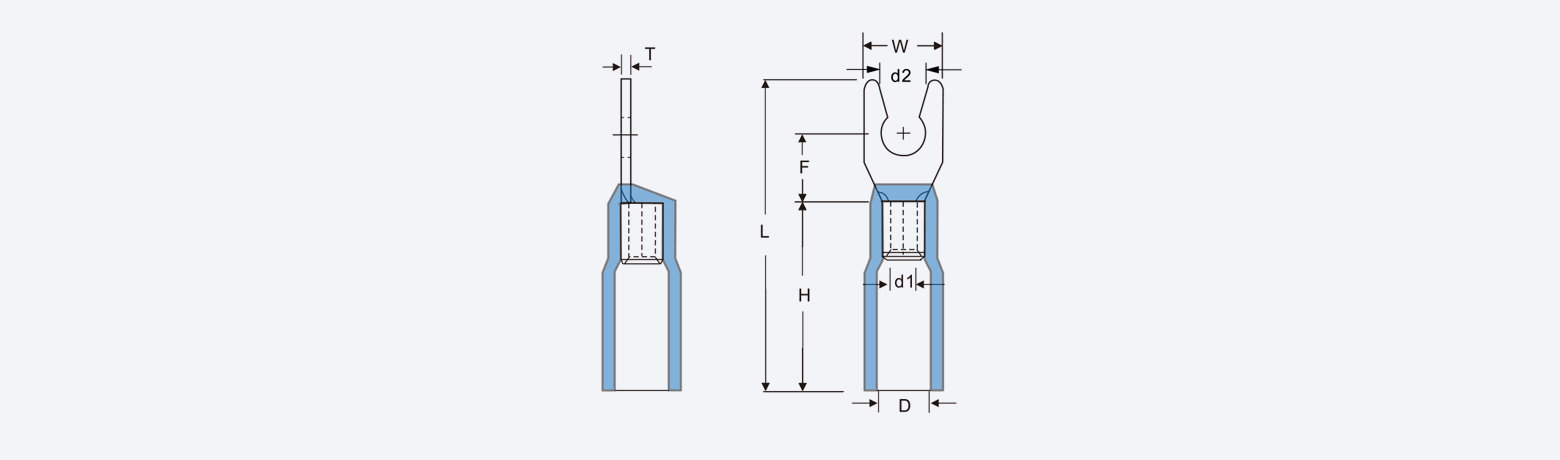

ITEM NO. | STUD SIZE | DIMENSION (mm) | PCS/ | COLOR | USE THE | EXPLANATION | ||||||||
Metric | American | d2 | W | F | L | H | d1 | D | T | |||||
HTLSV1.25-3.7 | 3.5 | #6 | 3.7 | 6.4 | 6.5 | 29.2 | 18.0 | 1.9 | 4.8 | 0.75 | 500 | ● Red | HX-30J | End material: Purple copper Insulation material: double-walled heat-shrinkable sleeve Max temperature resistance: 105℃ Wire range:0.5-1.5mm² AW.G.:(22-16) Max.current=19A |
HTLSV1.25-4 | 4 | #8 | 4.3 | 7.2 | ||||||||||
HTLSV1.25-5S | 5 | #10 | 5.3 | 8.1 | ||||||||||
HTLSV1.25-5L | 5 | #10 | 5.3 | 9.5 | ||||||||||
HTLSV2-3.7S | 3.5 | #6 | 3.7 | 6.0 | 6.5 | 29.2 | 18.0 | 2.4 | 5.8 | 0.8 | 500 | ● Blue | HX-30J | End material: Purple copper Insulation material: double-walled heat-shrinkable sleeve Max temperature resistance: 105℃ Wire range:1.5-2.5mm² AW.G.:(16-14) Max.current=27A |
HTLSV2-4 | 4 | #8 | 4.3 | 7.2 | ||||||||||
HTLSV2-4L | 4 | #8 | 4.3 | 8.1 | ||||||||||
HTLSV2-5S | 5 | #10 | 5.3 | 8.1 | ||||||||||
HTLSV2-5L | 5 | #10 | 5.3 | 9.5 | ||||||||||
HTLSV5.5-3.7 | 3.5 | #6 | 3.7 | 8.3 | 7.0 | 33.5 | 21.0 | 3.5 | 6.8 | 1.0 | 250 | ● Yellow | HX-30J | End material: Purple copper Insulation material: double-walled heat-shrinkable sleeve Max temperature resistance: 105℃ Wire range:4-6mm² AW.G.:(12-10) Max.current=48A |
HTLSV5.5-4 | 4 | #8 | 4.3 | 8.3 | ||||||||||
HTLSV5.5-5 | 5 | #10 | 5.3 | 9.0 | ||||||||||
HTLSV5.5-6 | 6 | 1/4" | 6.5 | 12.0 | 12.0 | 39.7 | ||||||||
