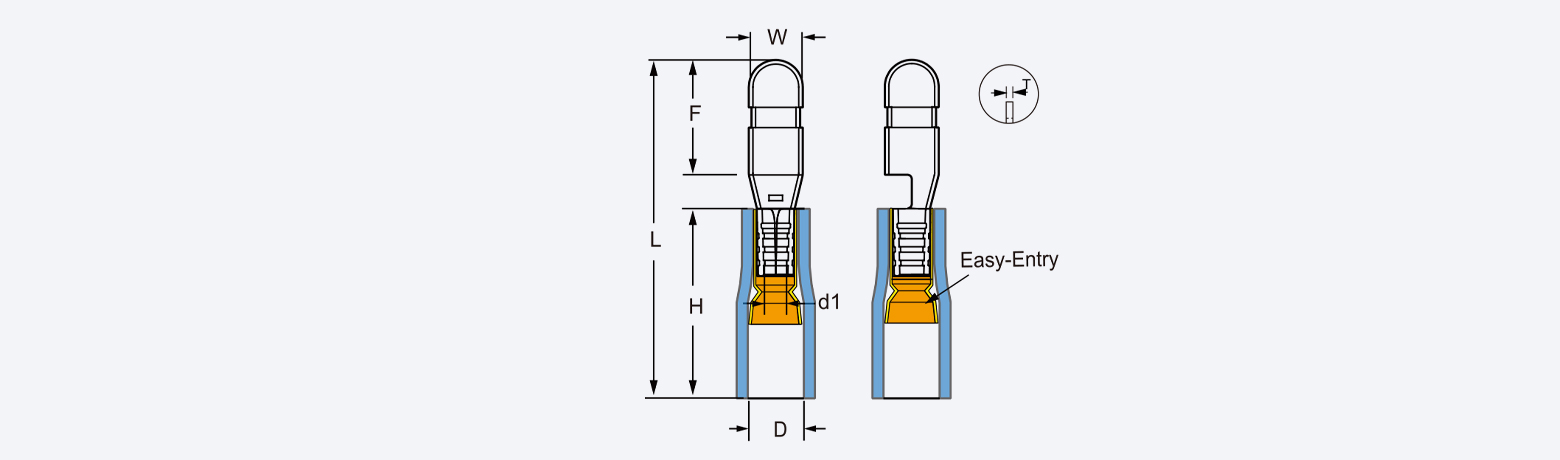

ITEM NO. | DIMENSION (mm) | PCS/ | COLOR | USE THE | EXPLANATION | ||||||
W | F | L | H | d1 | D | T | |||||
HMPHTD1.25-156 | 4.0 | 9.0 | 31 | 20 | 1.8 | 4.8 | 0.4 | 500 | ● Red | HX-30J1 | End material: Brass Insulation material: PVC Wire range:0.5-1.5mm² Max.current=10A A.W.G:(22-16) Max temperature resistance: 105℃ |
HMPHTD2-156 | 4.0 | 9.0 | 31 | 20 | 2.4 | 5.8 | 0.4 | 500 | ● Blue | HX-30J1 | End material: Brass Insulation material: PVC Wire range:1.5-2.5mm² Max.current=15A A.W.G:(16-14) Max temperature resistance: 105℃ |
HMPHTD5.5-195 | 5.0 | 9.0 | 34 | 23 | 3.5 | 6.8 | 0.4 | 250 | ● Yellow | HX-30J1 | End material: Brass Insulation material: PVC Wire range:4-6mm² Max.current=24A A.W.G:(12-10) Max temperature resistance: 105℃ |
