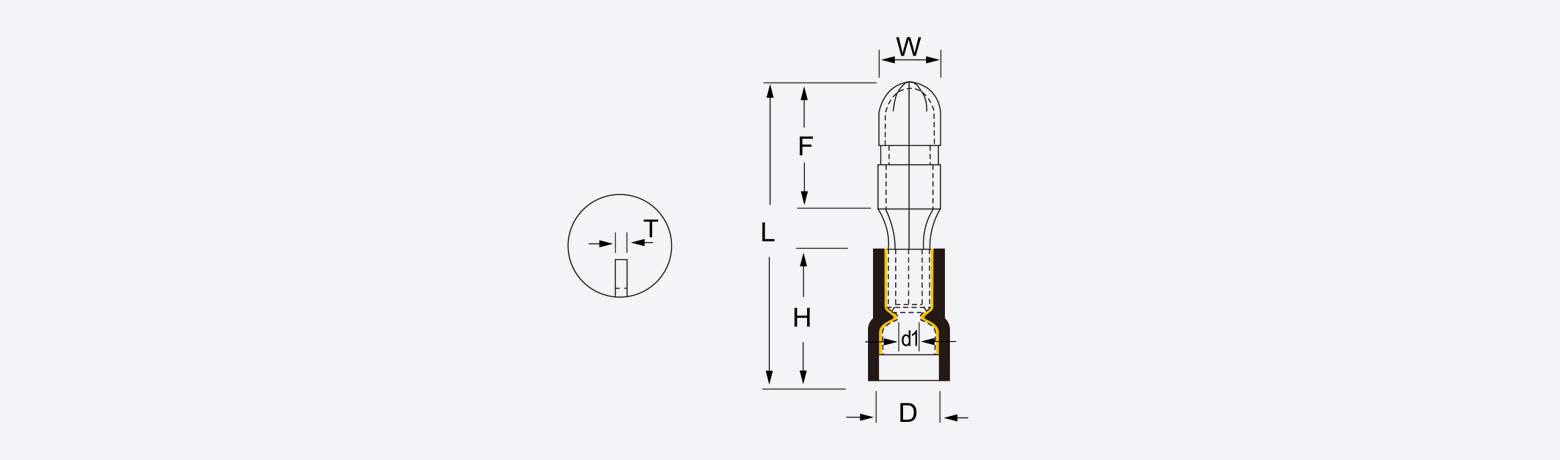

ITEM NO. | DIMENSION (mm) | PCS/ | COLOR | USE THE | EXPLANATION | ||||||
W | F | L | H | d1 | D | T | |||||
HMPVD1.25-156 | 4.0 | 9.0 | 21.0 | 10.0 | 1.9 | 3.8 | 0.4 | 1000 | ● Red | HX-30J1 | End material: Brass Insulation material: PVC with copper sheath Wire range:0.5-1.5mm² A.W.G:(22-16) Max.current=10A Max temperature resistance: 75℃ |
HMPVD2-156 | 4.0 | 9.0 | 21.0 | 10.0 | 2.4 | 4.7 | 0.4 | 1000 | ● Blue | HX-30J1 | End material: Brass Insulation material: PVC with copper sheath Wire range:1.5-2.5mm² A.W.G:(16-14) Max.current=15A Max temperature resistance: 75℃ |
HMPVD5.5-195 | 5.0 | 9.0 | 24.0 | 13.0 | 3.5 | 6.2 | 0.4 | 500 | ● Yellow | HX-30J1 | End material: Brass Insulation material: PVC with copper sheath Wire range:4-6mm² A.W.G:(12-10) Max.current=24A Max temperature resistance: 75℃ |
