Nylon-fully insulated double crimp bullet quick disconnectors（mini type）
HMPFNYD0.5-078
Get A Free Quote
Product Certification
Material
Adhering to the goal of striving and the company tenet of "quality first, integrity-based", we provide high-quality products and services to global users.
  • Insulation : Vinyl
  • Terminal Body : Copper
  • Plating:Tin
Certificate
Certificate certification: UL,Rohs, CE, ISO, SGS
Do You Want to Know More About Product Inquiries?
Feel Free to Contact Us Anytime !
Contact

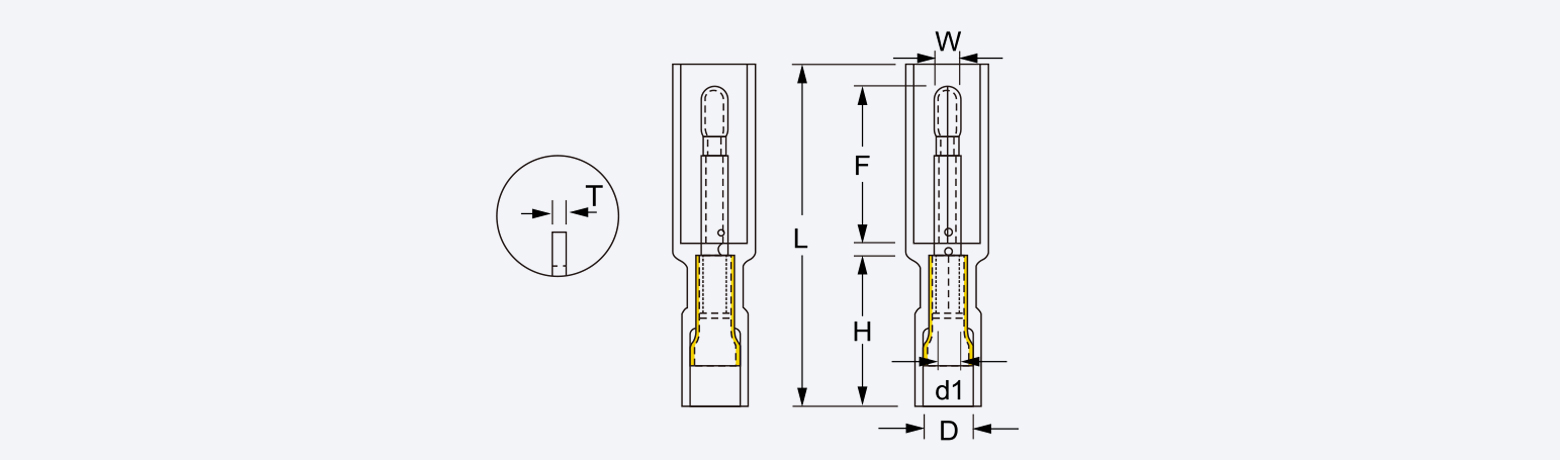

Size Parameter of HMPFNYD Series
Size Parameter of HMPFNYD Series

ITEM NO.

DIMENSION (mm)

PCS/
PACK

COLOR

USE THE
TOOLS

EXPLANATION

W

L

F

H

d1

D

T

HMPFNYD0.5-078

2.0

27.0

12.0

11.0

1.6

3.5

0.3

500

●

White

HX-30J

End material: Brass

Insulation material: PA66 with copper sheath

Wire range:0.2-0.5mm²

Max.current=10A

Max temperature resistance: 105℃

Application Scenarios
Packaging & Transportation
We use customized high-strength packaging, built-in cushioning protection, and professional logistics transportation solutions to ensure the safe and intact delivery of products from the factory to your hands.
We support the following transportation methods:
  • Sea transportation
  • Air transport
  • Land transportation
