Nylon-insulated double crimp piggy back quick disconnectors（mini type）
HPBDFNYD2-250
Get A Free Quote
Product Certification
Material
Adhering to the goal of striving and the company tenet of "quality first, integrity-based", we provide high-quality products and services to global users.
  • Insulation : Vinyl
  • Terminal Body : Copper
  • Plating:Tin
Certificate
Certificate certification: UL,Rohs, CE, ISO, SGS
Do You Want to Know More About Product Inquiries?
Feel Free to Contact Us Anytime !
Contact

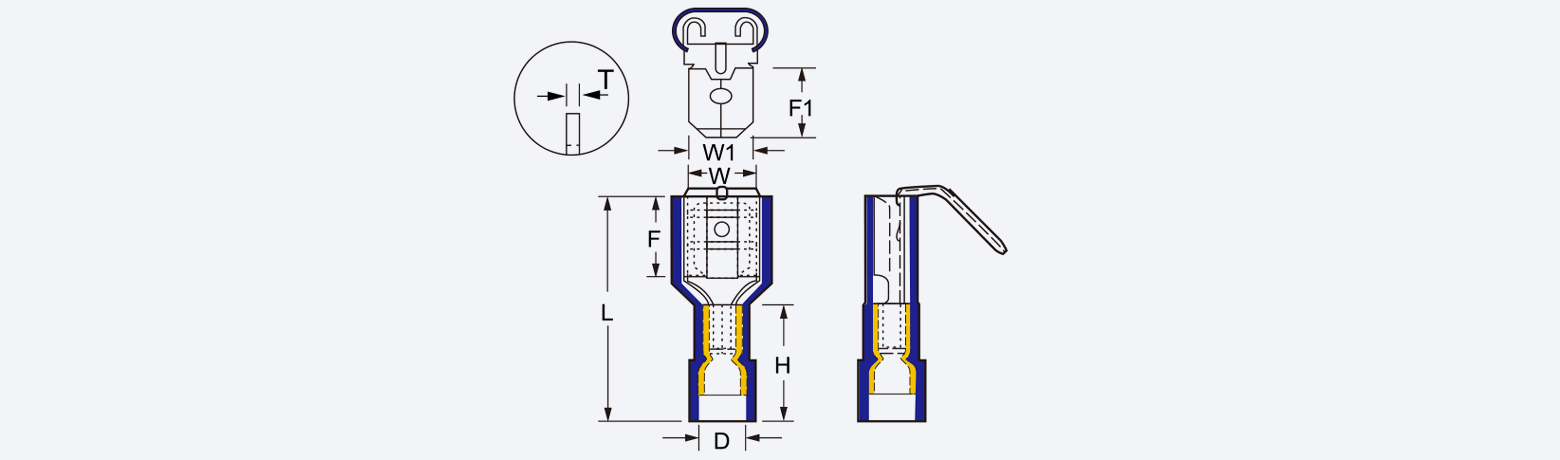

Size Parameter of HPBDFNYD Series
Size Parameter of HPBDFNYD Series

ITEM NO.

Nema Tab

DIMENSION (mm)

PCS/
PACK

COLOR

USE THE
TOOLS

EXPLANATION

W

W1

F

F1

L

H

D

T

HPBDFNYD1.25-250

0.8×6.35

7.5

6.35

8.0

8.2

22.0

11.0

4.0

0.4

500

●

Red

HX-30J

End material: Brass

Insulation material: PA66 with copper sheath

Wire range:0.5-1.5mm²

Max.current=10A

Max temperature resistance: 105℃

HPBDFNYD2-250

0.8×6.35

7.5

6.35

8.0

8.2

22.0

11.0

4.8

0.4

500

●

Blue

HX-30J

End material: Brass

Insulation material: PA66 with copper sheath

Wire range:1.5-2.5mm²

Max.current=15A

Max temperature resistance: 105℃

Application Scenarios
Packaging & Transportation
We use customized high-strength packaging, built-in cushioning protection, and professional logistics transportation solutions to ensure the safe and intact delivery of products from the factory to your hands.
We support the following transportation methods:
  • Sea transportation
  • Air transport
  • Land transportation
