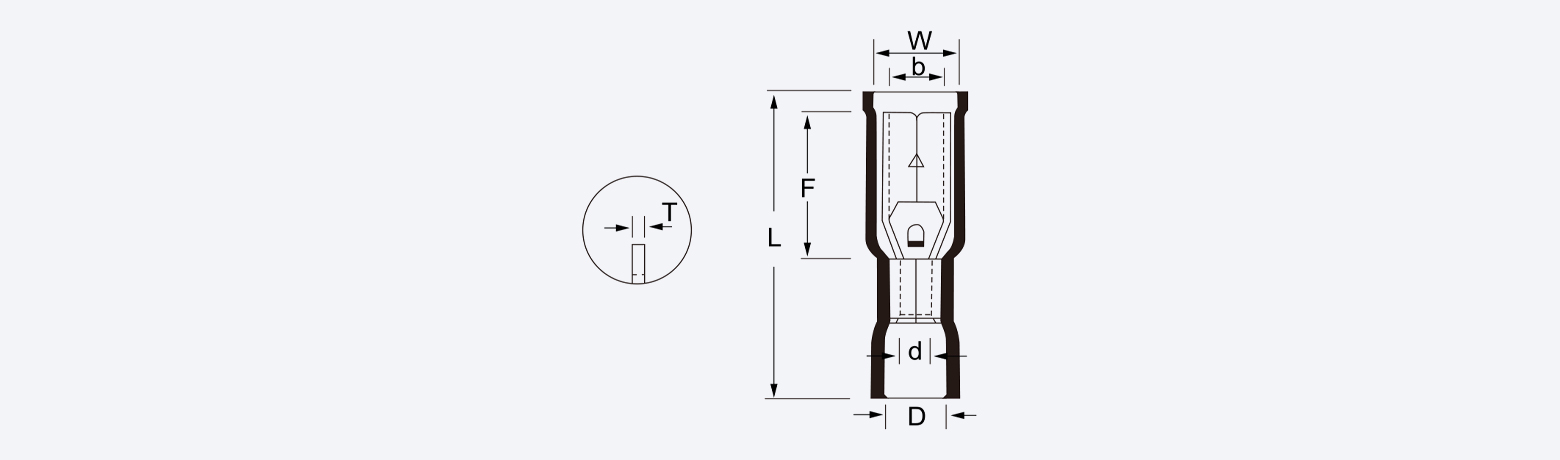

ITEM NO. | DIMENSION (mm) | PCS/ | COLOR | USE THE | EXPLANATION | |||||
W | F | L | d1 | D | T | |||||
HFRD1.25-156 | 6..0 | 13.0 | 23.3 | 1.8 | 3.8 | 0.4 | 500 | ● Red | HX-30J | End material: Brass Insulation material: PVC Wire range:0.5-1.5mm² A.W.G:(22-16) Max.current=10A Max temperature resistance: 75℃ |
HFRD2-156 | 6.0 | 14.0 | 23.3 | 2.4 | 4.3 | 0.4 | 500 | ● Blue | HX-30J | End material: Brass Insulation material: PVC Wire range:1.5-2.5mm² A.W.G:(16-14) Max.current=15A Max temperature resistance: 75℃ |
HFRD5.5-195 | 7.0 | 14.0 | 25.0 | 3.5 | 5.6 | 0.4 | 500 | ● Yellow | HX-30J | End material: Brass Insulation material: PVC Wire range:4-6mm² A.W.G:(12-10) Max.current=24A Max temperature resistance: 75℃ |
