Non-insulated connector terminals

HPC1L250-17

Product Certification

Material

Adhering to the goal of striving and the company tenet of "quality first, integrity-based", we provide high-quality products and services to global users.

Insulation : Vinyl
Terminal Body : Copper
Plating:Tin

Certificate

Certificate certification: UL,Rohs, CE, ISO, SGS

Do You Want to Know More About Product Inquiries?
Feel Free to Contact Us Anytime !

Contact

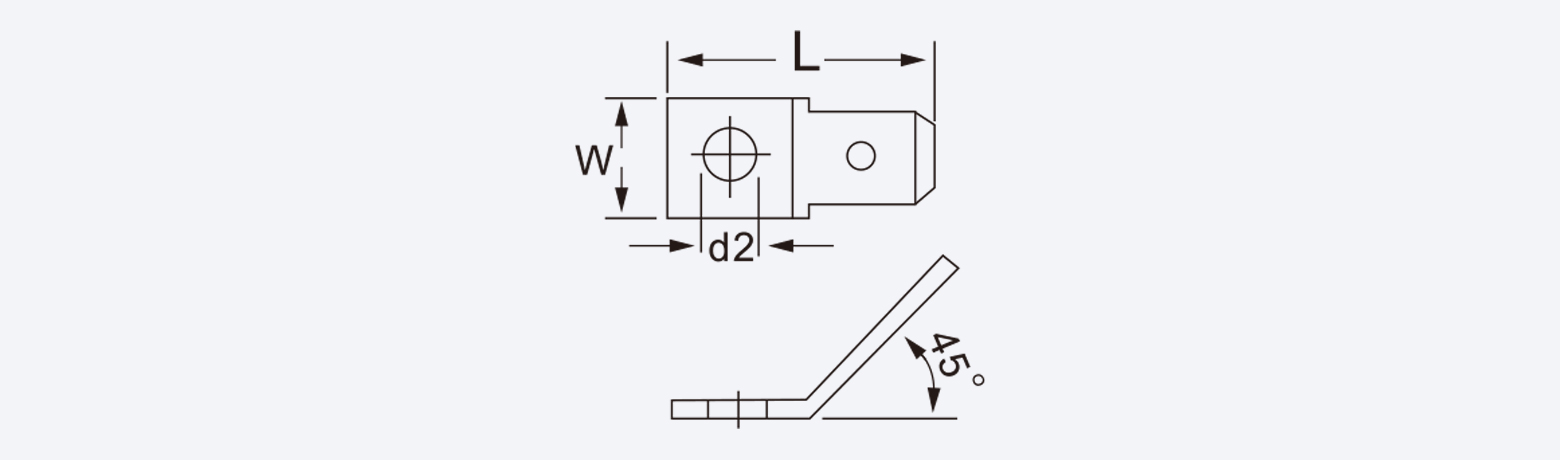

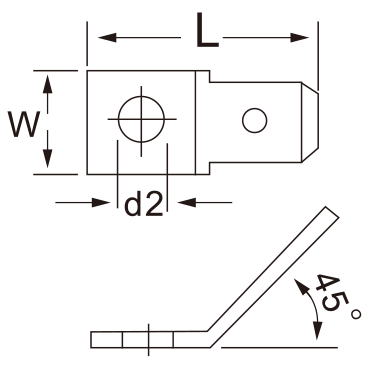

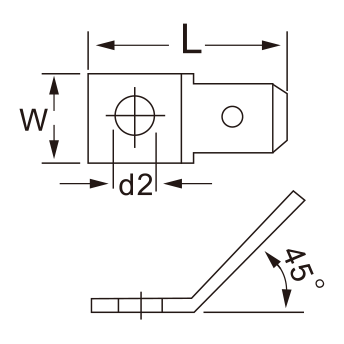

Size Parameter of HPC1L Series

ITEM NO.	STUD SIZE		Nema Tab	DIMENSION (mm)			FIGURE	PCS/ PACK
ITEM NO.	Metric	American	Nema Tab	d2	W	F	FIGURE	PCS/ PACK
HPC1L250-6	6.0	1/4	0.8×6.35	6.5	11.5	27.0		500
HPC1L250-8	8.0	5/16"	0.8×6.35	8.5	11.5	27.0		500
HPC1L250-10	10.0	3/8"	0.8×6.35	10.5	17.0	32.5		200
HPC1L250-12	12.0	1/2"	0.8×6.35	13.0	17.0	32.5		200
HPC1L250-17	16.0	5/8"	0.8×6.35	17.0	27.5	42.6		100

Application Scenarios

Packaging & Transportation

We use customized high-strength packaging, built-in cushioning protection, and professional logistics transportation solutions to ensure the safe and intact delivery of products from the factory to your hands.

We support the following transportation methods:

Sea transportation
Air transport
Land transportation
