Nylon-fully insulated flag female quick disconnectors
HFLDNY2-250
Get A Free Quote
Product Certification
Material
Adhering to the goal of striving and the company tenet of "quality first, integrity-based", we provide high-quality products and services to global users.
  • Insulation : Vinyl
  • Terminal Body : Copper
  • Plating:Tin
Certificate
Certificate certification: UL,Rohs, CE, ISO, SGS
Do You Want to Know More About Product Inquiries?
Feel Free to Contact Us Anytime !
Contact

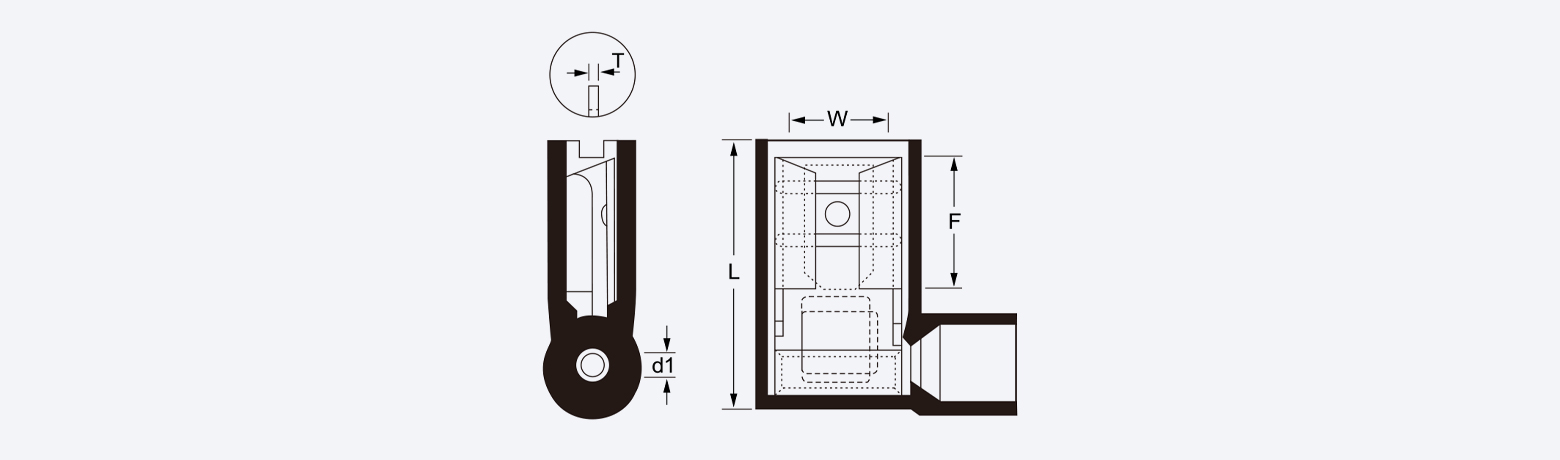

Size Parameter of HFLDNY Series
Size Parameter of HFLDNY Series

ITEM NO.

Nema Tab

DIMENSION (mm)

PCS/
PACK

COLOR

USE THE
TOOLS

EXPLANATION

W

F

L

d1

T

HFLDNY1.25-187(5)A

0.5×4.75

5.8

7.0

15

1.8

0.35

500

●

Red

LX-07FL

End material: Brass

Insulation material: PA66

Wire range:0.5-1.0mm²

Max.current=10A

A.W.G:(22-18)

Max temperature resistance: 105℃

HFLDNY1.25-187(8)A

0.8×4.75

HFLDNY1.25-250

0.8×6.35

7.5

8.4

16

1.8

0.5

500

●

Red

LX-07FL

End material: Brass

Insulation material: PA66

Wire range:0.5-1.5mm²

Max.current=10A

A.W.G:(22-16)

Max temperature resistance: 105℃

HFLDNY2-187(5)A

0.5×4.75

5.8

7.0

15.2

2.4

0.35

500

●

Blue

LX-07FL

End material: Brass

Insulation material: PA66

Wire range:1.5-2.5mm²

Max.current=15A

A.W.G:(16-14)

Max temperature resistance: 105℃

HFLDNY2-187(8)A

0.8×4.75

HFLDNY2-250

0.8×6.35

7.5

8.4

16

2.4

0.5

500

●

Blue

LX-07FL

End material: Brass

Insulation material: PA66

Wire range:1.5-2.5mm²

Max.current=15A

A.W.G:(16-14)

Max temperature resistance: 105℃
