Nylon-fully insulated flag female quick disconnectors（Extended version）
HFLDNYD5.5-250
Get A Free Quote
Product Certification
Material
Adhering to the goal of striving and the company tenet of "quality first, integrity-based", we provide high-quality products and services to global users.
  • Insulation : Vinyl
  • Terminal Body : Copper
  • Plating:Tin
Certificate
Certificate certification: UL,Rohs, CE, ISO, SGS
Do You Want to Know More About Product Inquiries?
Feel Free to Contact Us Anytime !
Contact

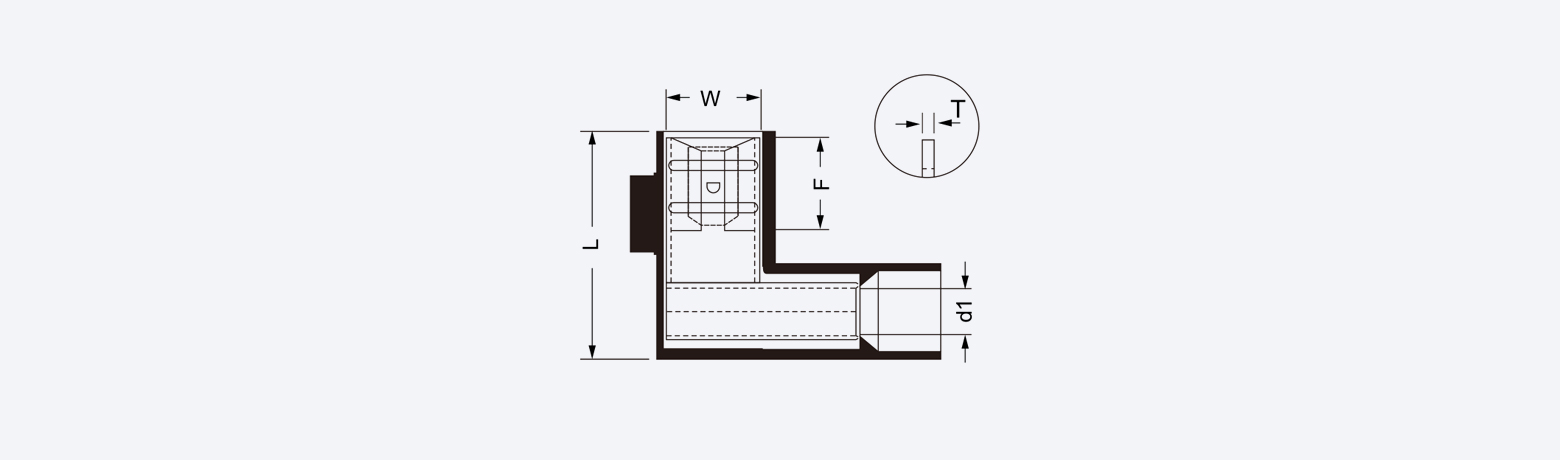

Size Parameter of HFLDNYD Series
Size Parameter of HFLDNYD Series

ITEM NO.

Nema Tab

DIMENSION (mm)

PCS/
PACK

COLOR

USE THE
TOOLS

EXPLANATION

W

F

L

d1

T

HFLDNYD5.5-250

0.8×6.35

7.5

7.3

158

3.5

0.4

250

●

Yellow

LX-07FL

End material: Brass

Insulation material: PA66

Wire range:4-6mm²

Max.current=24A

A.W.G:(12-10)

Max temperature resistance: 105℃

Application Scenarios
Packaging & Transportation
We use customized high-strength packaging, built-in cushioning protection, and professional logistics transportation solutions to ensure the safe and intact delivery of products from the factory to your hands.
We support the following transportation methods:
  • Sea transportation
  • Air transport
  • Land transportation
