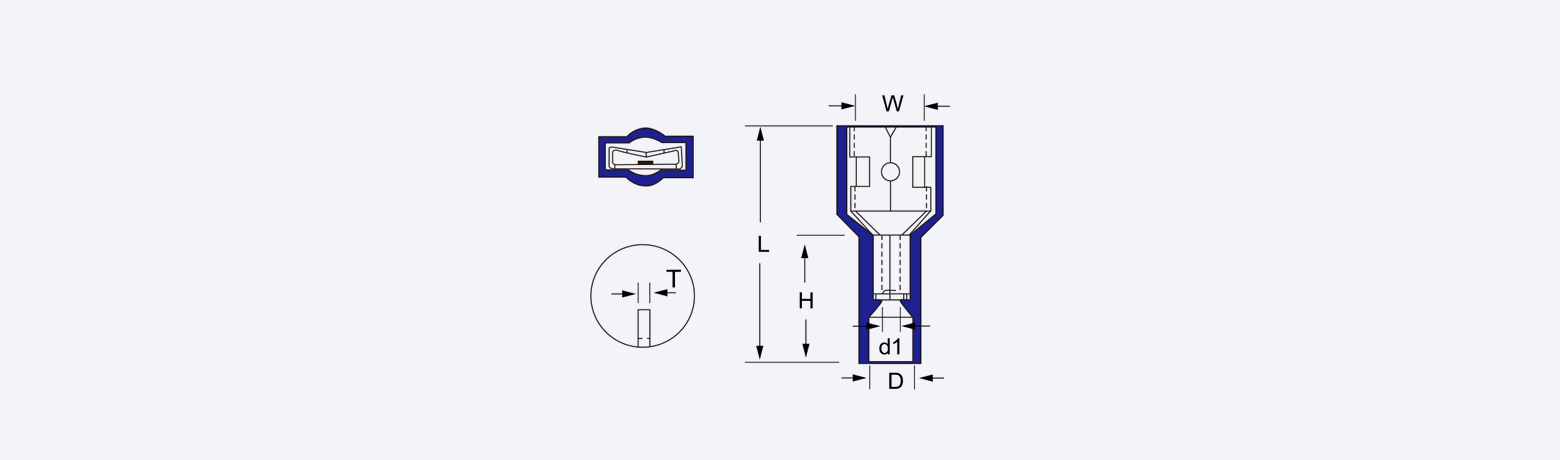

ITEM NO. | Nema Tab | DIMENSION (mm) | PCS/ | COLOR | USE THE | EXPLANATION | |||||
W | L | H | d1 | D | T | ||||||
HFDFNY1.25-250 | 0.8×6.35 | 7.5 | 22.0 | 11.0 | 1.8 | 4.0 | 0.4 | 500 | ● Red | HX-30J | End material: Brass Insulation material: PA66 Wire range:0.5-1.5mm² A.W.G:(22-16) Max.current=10A Max temperature resistance: 105℃ |
HFDFNY2-250 | 0.8×6.35 | 7.5 | 22.0 | 11.0 | 2.4 | 4.5 | 0.4 | 500 | ● Blue | HX-30J | End material: Brass Insulation material: PA66 Wire range:1.5-2.5mm² A.W.G:(16-14) Max.current=15A Max temperature resistance: 105℃ |
