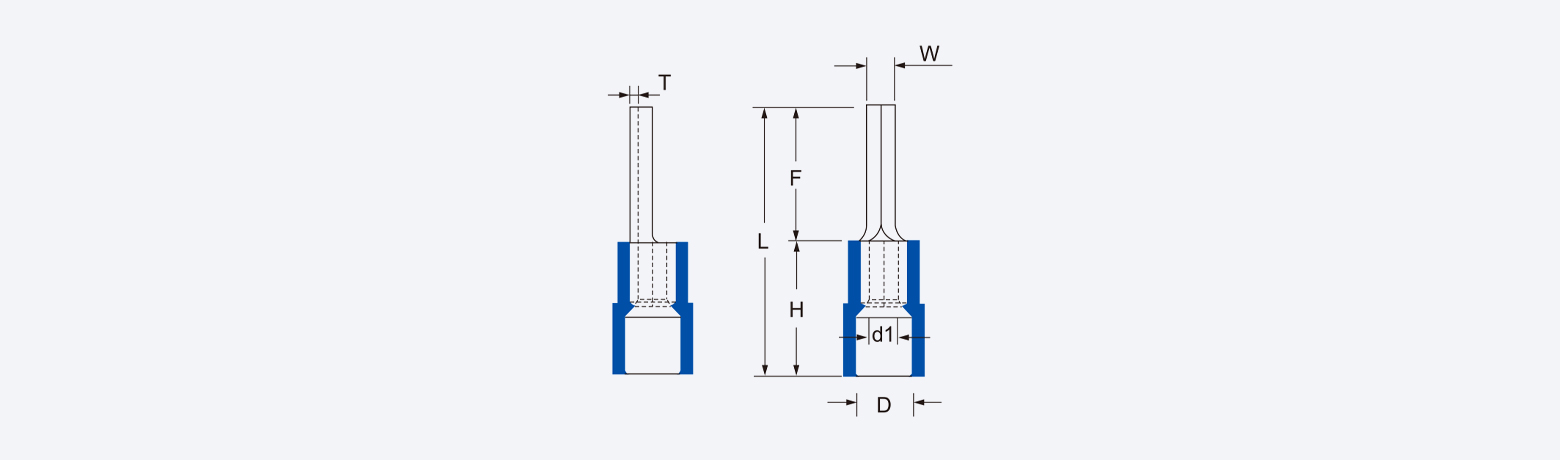

ITEM NO. | DIMENSION (mm) | PCS/ | COLOR | USE THE | EXPLANATION | ||||||
W | F | L | H | d1 | D | T | |||||
HPTNY1.25-10 | 1.9 | 10.0 | 21.0 | 11.0 | 1.9 | 4.3 | 0.75 | 1000 | ● Red | HX-30J | End material: Purple copper Insulation material: PA66 Max temperature resistance: 75℃ Wire range:0.5-1.5mm² A.W.G.:(22-16) Max.current=19A |
HPTNY1.25-13 | 13.0 | 24.0 | |||||||||
HPTNY1.25-17 | 17.0 | 28.0 | |||||||||
HPTNY2-10 | 1.9 | 10.0 | 21.0 | 11.0 | 2.4 | 4.8 | 0.8 | 1000 | ● Blue | HX-30J | End material: Purple copper Insulation material: PA66 Max temperature resistance: 75℃ Wire range:1.5-2.5mm² A.W.G.:(16-14) Max.current=27A |
HPTNY2-12 | 12.0 | 23.0 | |||||||||
HPTNY2-17 | 17.0 | 28.0 | |||||||||
HPTNY5.5-13 | 2.8 | 13.0 | 26.0 | 13.0 | 3.4 | 6.7 | 1.0 | 500 | ● Yellow | HX-30J | End material: Purple copper Insulation material: PA66 Max temperature resistance: 75℃ Wire range:4-6mm² A.W.G.:(12-10) Max.current=48A |
HPTNY5.5-25 | 25 | 38 | |||||||||
