ITEM NO. | STUD SIZE | DIMENSION (mm) | PCS/ | COLOR | USE THE | EXPLANATION | ||||||||

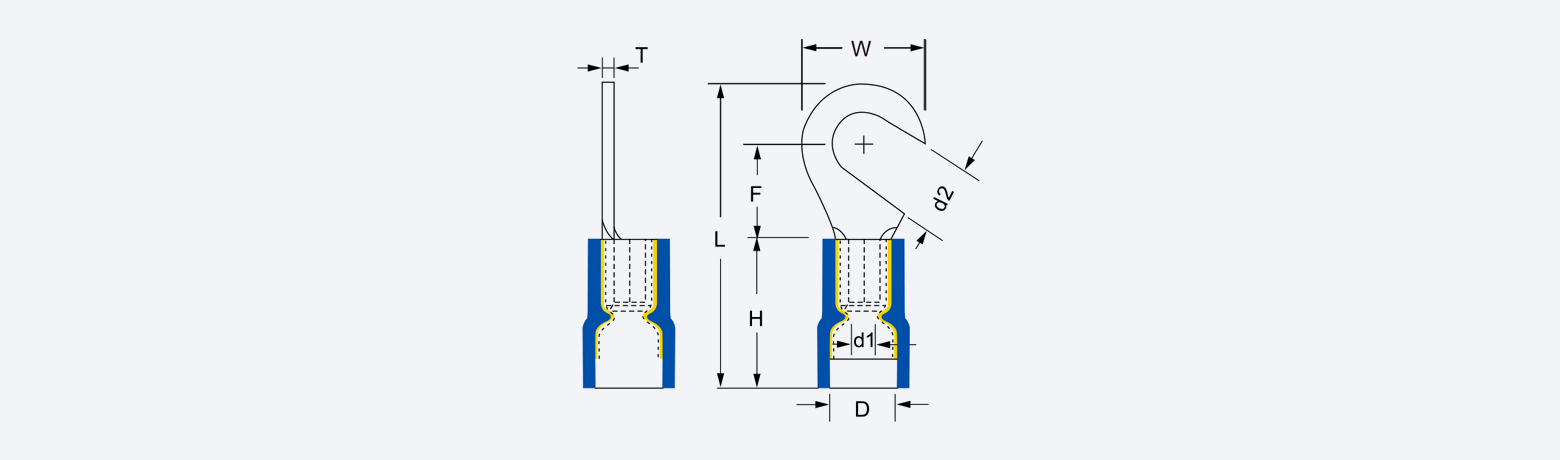

Metric | American | d2 | W | F | L | H | d1 | D | T | |||||
HHD1.25-3.7 | 3.5 | #6 | 3.7 | 8.0 | 7.0 | 21.0 | 10.0 | 1.9 | 4.5 | 0.75 | 1000 | ● Red | HX-30J | End material: Purple copper Insulation material: PVC with copper sheath Max temperature resistance: 75℃ Wire range:0.5-1.5mm² A.W.G.:(22-16) Max.current=19A |
HHD1.25-4 | 4 | #8 | 4.3 | |||||||||||
HHD1.25-5 | 5 | #10 | 5.3 | |||||||||||
HHD1.25-6 | 6 | 1/4" | 6.5 | 11.6 | 11.2 | 27.0 | ||||||||
HHD2-3.7 | 3.5 | #6 | 3.7 | 8.5 | 7.75 | 22.0 | 10.0 | 2.4 | 5.0 | 0.8 | 1000 | ● Blue | HX-30J | End material: Purple copper Insulation material: PVC with copper sheath Max temperature resistance: 75℃ Wire range:1.5-2.5mm² A.W.G.:(16-14) Max.current=27A |
HHD2-4 | 4 | #8 | 4.3 | |||||||||||
HHD2-5 | 5 | #10 | 5.3 | 9.5 | 7.5 | 22.3 | ||||||||
HHD2-6 | 6 | 1/4" | 6.5 | 12.0 | 11.0 | 27.0 | ||||||||
HHD5.5-3.7 | 3.5 | #6 | 3.7 | 7.2 | 5.9 | 22.7 | 13.0 | 3.5 | 6.7 | 1.0 | 500 | ● Yellow | HX-30J | End material: Purple copper Insulation material: PVC with copper sheath Max temperature resistance: 75℃ Wire range:4-6mm² A.W.G.:(12-10) Max.current=48A |
HHD5.5-4 | 4 | #8 | 4.3 | 9.5 | 8.85 | 26.6 | ||||||||
HHD5.5-5 | 5 | #10 | 5.3 | |||||||||||
HHD5.5-6 | 6 | 1/4" | 6.5 | 12.0 | 10.5 | 29.5 | ||||||||
HHD5.5-8 | 8 | 5/16" | 8.5 | 15.0 | 13.5 | 34.0 | ||||||||
